NXP CX24109数字卫星电视调谐方案

NXP公司的CX24109是高度集成的直接下变换数字卫星电视调谐器,适用于数字视频,音频和数据接收器.和CX24121 QPSK 解调器/FEC译码器,芯片组提供完整的宽带卫星前端解决方案,能在最苛刻的卫星环境提供1-45MSps的速率,并和国际标准如DVB与DSS兼容.本文介绍了CX24109的主要特性,功能方框图以及简化的芯片组应用电路图.

CX24109: Digital Satellite Tuner

The CX24109 is a highly integrated, direct down-conversion satellite tuner intended for high-volume digital video, audio, and data receivers. When combined with the CX24121 QPSK demodulator/FEC decoder, the chip set provides a complete broadband satellite front-end solution capable of operating from 1–45 MSps in the most demanding satellite environments. It is compatible with international standards such as DVB and DSS. The highly integrated CX24109 reduces the tuner BOM cost and simplifies the RF layout.

CX24109主要特性:

Zero-IF architecture eliminates the need for image reject filtering

Integrated LNA

Integrated LO with onboard VCO and synthesizer

Single +5 V supply

Reference oscillator output for demodulator

CX24109主要应用:

DBS set-top boxes

Commercial digital video, audio, and data receivers

Digital VCRs

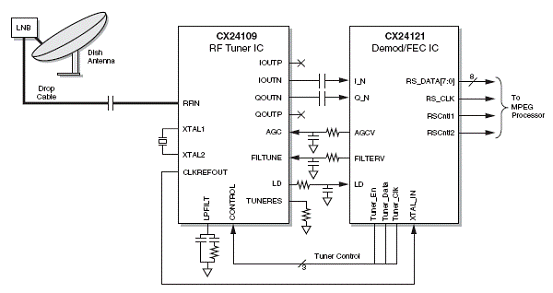

                                                            图1.CX24109功能方框图

                                                           图2.CX24109 QPSK解调应用方框图

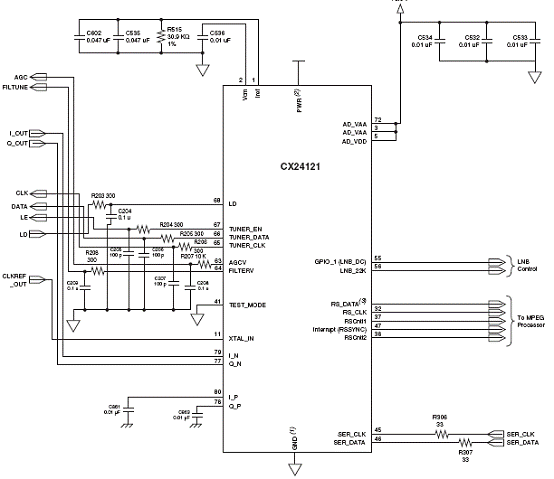

                                                           图3.简化CX24109应用电路图(1/2)

                                                             图4.简化应用电路图(2/2)
